Manufacturing Processes

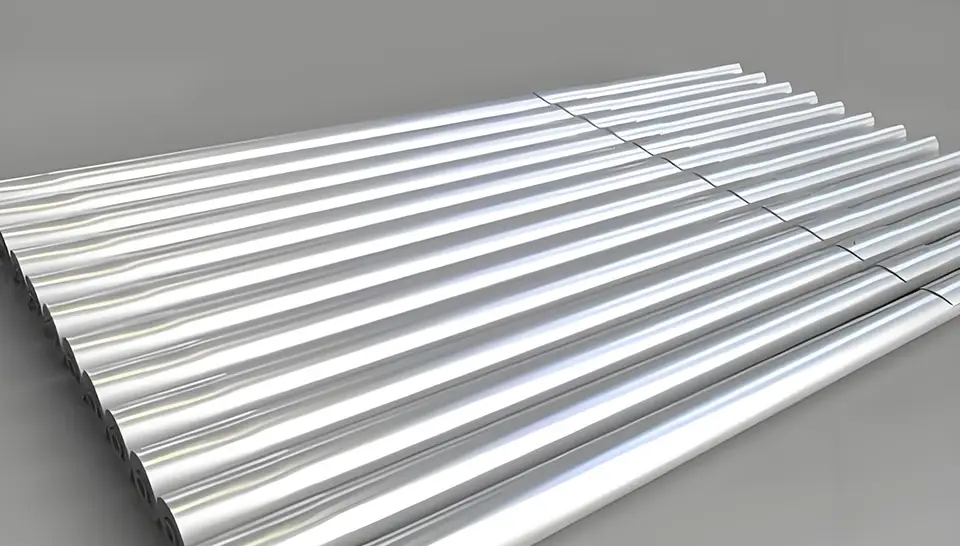

Raw materials for spinning are aluminum alloy 6063/6060 tube. It is an excellent aluminium alloy widely used for the construction of aluminum windows and doors, curtain wall frame, with high level wind resistance pressure, assembly performance, corrosion resistance and decorative properties.

Through large full CNC spinning equipment, raw materials are made into conical or profled bar in the process of high speed spinning. All the poles do not allow longitudinal welding line, and it requirements smooth lines and excellent roundness.

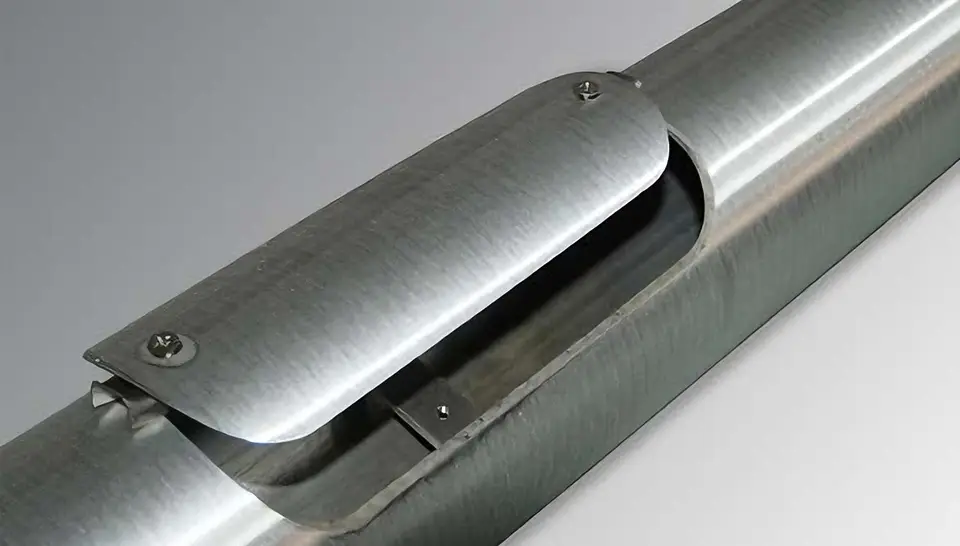

Eachpolehasajunctionboxforelectricdoorinstallation. Morelux adopts advanced cutting equipment to cut the hole door, the door becomes a part of the rod body, ensuring the waterproof of electric door. we use allen key to protect the door, mean time we welding workpiece “L” for the grounding wire.

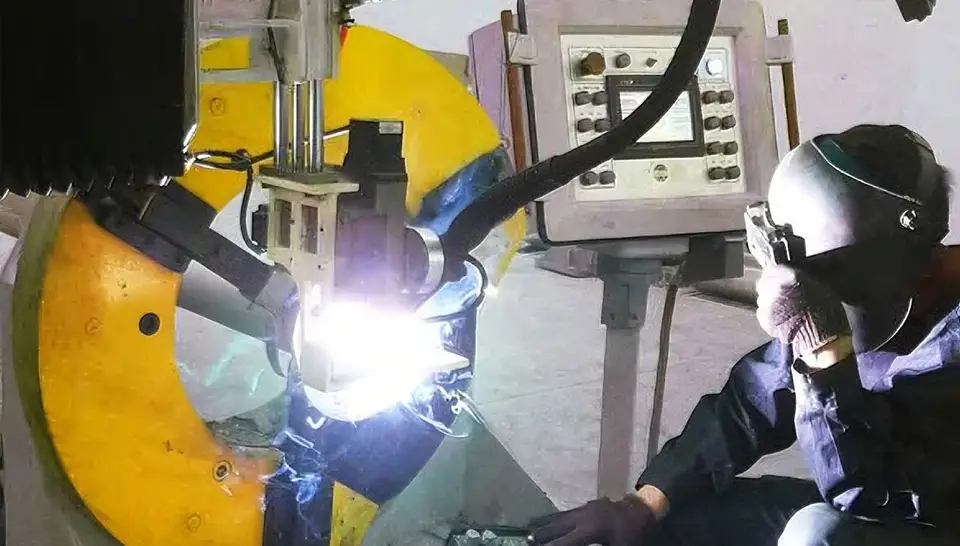

The base using A356 low pressure casting, and T6 heat treatment, we use automatic welding equipment to connect base and pole. The welding quality has the Canadian welding Bureau certifcation. In this high quality welding process, the welding strength and beauty are guaranteed.

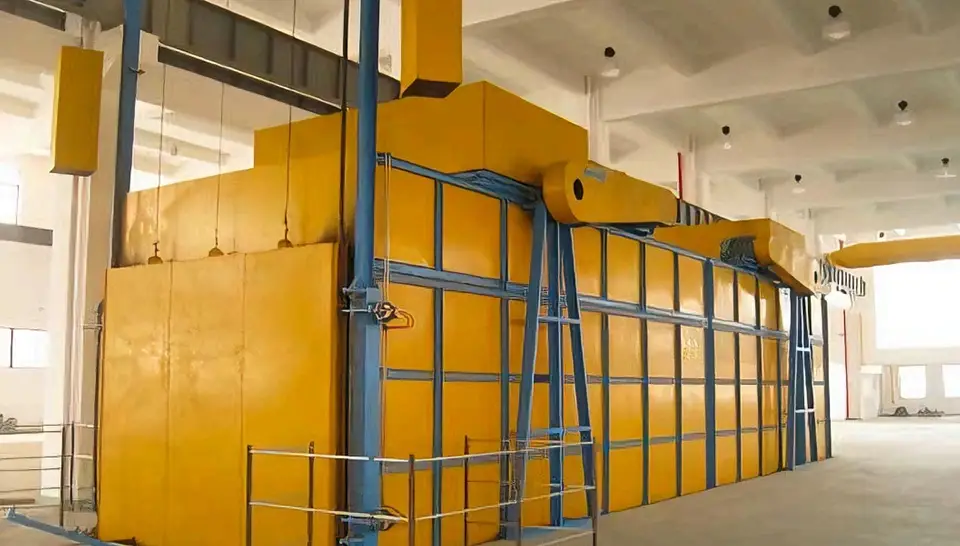

Heating in the 185-195temperature interval 7-8 hours to make the rod body molecular structure tends to be stable, the hardness reaches9-11HW.

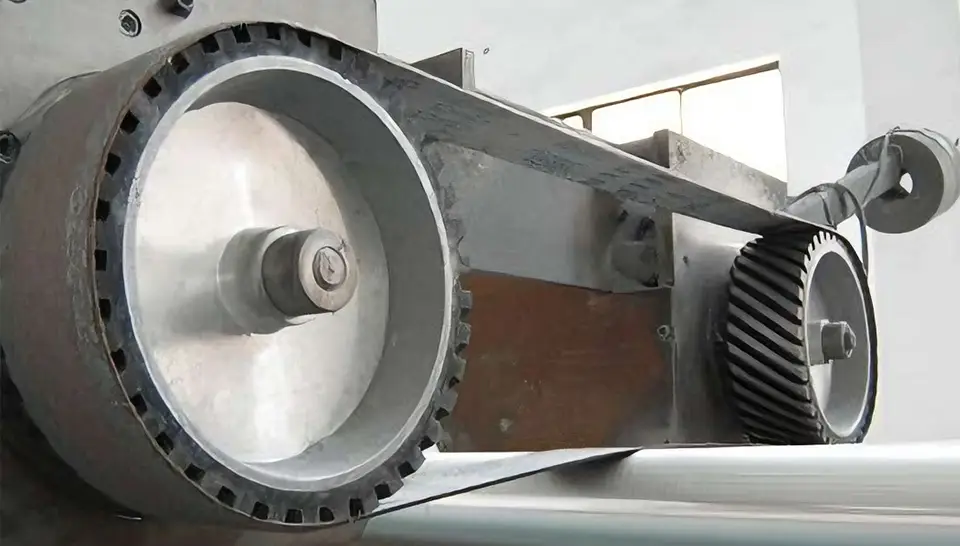

Before surface fnish, we can polish the pole in diferent thickness to ft customer requestment.

We have four fnishing for aluminum poles as following:
● Anodizing
Anodizing is an electrochemical mothod which creates an oxide layer on the surface of the matel,which is suitable for coastal corrosion areas or salted areas.The standard anodizing coating is 15um,but we can do better according to customer’s require.
● Fluorocarbon Coating
A new coating material,it has excellent anti-fade,anti-air polluted(acid rain) corrosion,anti-UV ability.

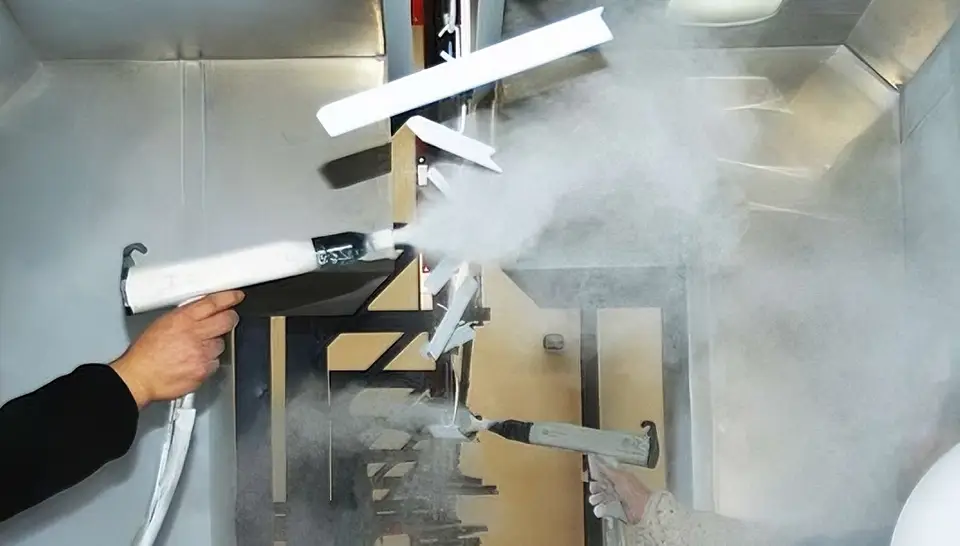

● Powder Coating
Colored polyester powder coating,it has bright color,anti-ultraviolet radiation,non-fading.
● Water Transfer Printing
Through the water pressure to make the wood design enclosed on the pole surface.

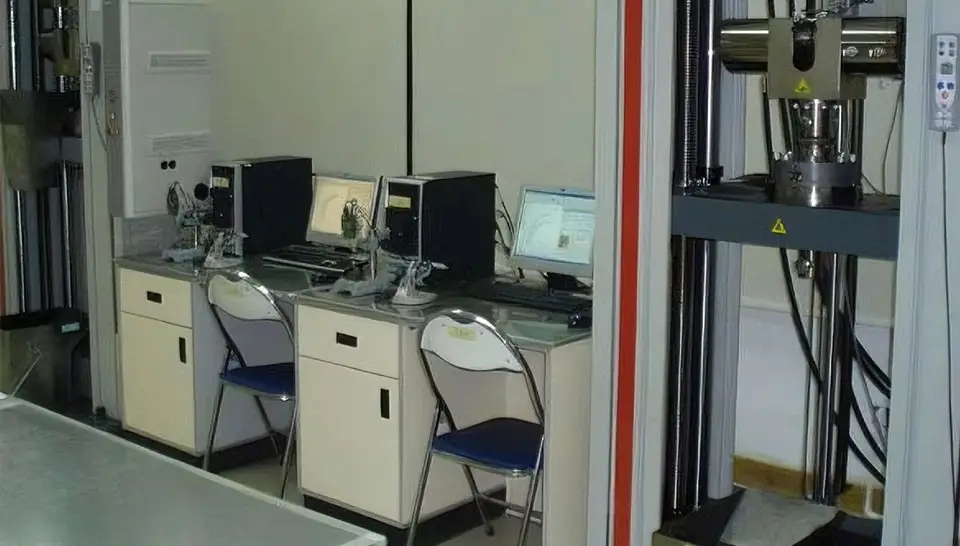

Morelux has complete testing equipments especially for the poles, brakets and accessories. Our inspection including: tensile testing, yield strength test, ductility test, oxidation/spray flm thickness test, adhesion test, hardness test, the base of mirror image analysis and testing. ensuring the quality of each aluminum poles. mean time, morelux imported a spectrometer can have determination of aluminum materials, constitute a chemical element, compliance with international standards.

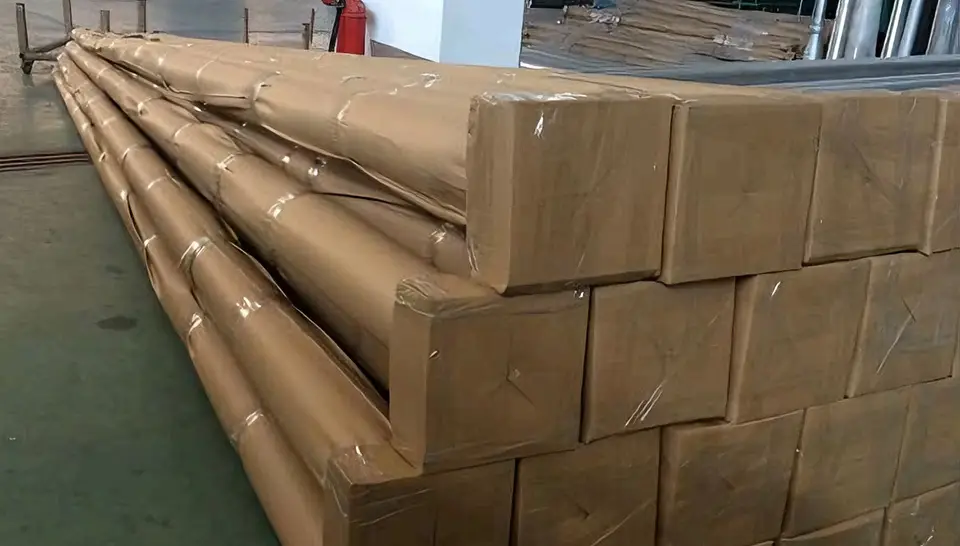

Morelux use reinforcement nylon bag, bubble bag and corrugated packaging multilayer light pole, three layers of packaging can be carefully protected to ensure the lamp post, lamp post not to be damaged in transportation.
